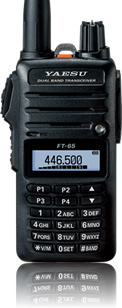

FT-65R - VHF/UHF 2 Meter/70cm Dual Band FM Handheld Transceiver
The FT-65R is a very compact, ruggedly constructed Handheld VHF/UHF with three selectable power settings 5W / 2.5W / 0.5W allowing each user to select the power they need. The big front speaker provides a full 1 watt of crisp, clear audio quality. The unit comes supplied with a 1950mAh Li-ion battery pack capable of over 9 hours of operation, with an optional higher capacity 2500mAh Li-ion battery for over 11.5 hours of operating time. A 3.5 hour rapid charger comes standard, making the transceiver ready to operate at any time. Our newly designed large white LED displays are vibrant and highly visible. Four Quick Recall Keys (QRK) are user programmable to instantly recall favorite channels with just the push of a button. VOX operation is available with the optional Earpiece Microphone SSM-512B. Other useful features included: versatile scanning capabilities such as Programmable VFO Scan, Memory Scan, Priority Channel Scan, and Weather Alert Scan, WX Channels with "Severe Weather" Alert, PC Programming, Transceiver-to-Transceiver Cloning, FM Broadcast Receiver, Automatic Range Transponder System (ARTS), CTCSS/ DCS Operation, Busy Channel Lockout (BLCO), Automatic Power Off feature, and Transmitter Time Out Timer (TOT).
Commercial Grade VHF / UHFThe FT-65R is built to commercial grade standards, including the IP54 Rating for Dust and Water protection, and the MIL-810-C,D and E standards making this radio suitable for operation in the harshest of environments.Powerful OutputsWith 5 Watts of reliable RF output power this radio is sure to be heard. Never miss a call with One watt of Crisp, Clear Audio output from the oversized front panel speaker.High Capacity Li-Ion batteryPackaged with a powerful 1950 mAh Li-Ion battery pack, giving the radio over 9 hours of operating time, or upgrade to the optional High-Capacity 2500 mAh Li-Ion battery pack for over 11.5 hours of extended operating time. To ensure minimal down time the FT-65R also comes packaged with a 3.5-Hour Rapid charger.QRK (Quick Recall Key)Four Dedicated User programmable Keys serve as short cut keys to preferred menu options, or use the four dedicated recall keys to quickly and easily store and recall desired frequencies.Versatile Scanning CapabilitiesProgrammable VFO Scan scans all channels in the desired frequency range, Memory scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while making one channel a priority. Weather Alert scan alerts the user when severe weather is approaching.PC ProgrammableThe FT-65R is capable of being programmed directly from a PC making all of the advanced setup features a breeze using the optional software and SCU-35 programming cable.More Advanced featuresTons of advanced features are loaded into this compact radio including: Transceiver to Transceiver cloning with the optional SCU-36 clone cable, FM Band receiver equipped, ARTS (Automatic Range Transponder System), DTMF operation, CTCSS/DCS operation, TOT (time out timer) and more.
Model Antennas SRA-15
1950mAh Li-ion battery
2500mAh Li-ion battery
SAD-20B 110V Charging Cable
VOX Earpiece Microphone
Amateur Radio \ Amateur Product Images.
FT-65_Front ( 1.75 MB )
FT-65_side ( 1.69 MB )
Amateur Radio \ Brochures \ VHF Handhelds.
FT-65/FT-25 Leaflet ( 689.79 KB )
Amateur Radio \ Manuals \ VHF/UHF Handhelds.
FT-65E French Advance Manual ( 5.79 MB )
FT-65E Spanish Advance Manual ( 5.77 MB )
FT-65E French Operating Manual ( 7.01 MB )
FT-65E Deutsch Operating Manual ( 7.02 MB )
FT-65E Italiano Operating Manual ( 7.00 MB )
FT-65E Spanish Operating Manual ( 6.98 MB )
FT-65R/E Advance Manual ( 5.82 MB )
FT-65R/E Operating Manual ( 7.02 MB )
Amateur Radio \ Software.
FT-65R/FT-65E Memory Programmer (EXP) ( 13.26 MB )
FT-65R/FT-65E Memory Programmer v110 (USA/EU) ( 13.27 MB )
