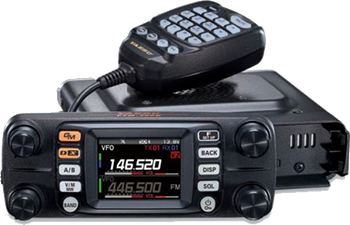

We are pleased to introduce the new 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceiver – FTM-300DR.
The new FTM-300DR provides stable and reliable 50W RF power output. As in recent YAESU mobile transceivers, the FTM-300DR is also equipped with a heavy-duty heat sink that includes our exclusive FACC (Funnel Air-Convection Conductor – Wind Tunnel).
Real Dual Band Operation (V+V, U+U, V+U, U+V) is available with two independent receivers, and the FTM-300DR supports simultaneous C4FM digital monitoring for both the A and B bands.
2-inch High-Resolution QVGA Full-Color TFT Display clearly highlights the frequency and operation bands.
With the Band Scope Function, users can monitor up to 63 channels centered around the current VFO frequency in real time. (21 channels in memory channel mode)
Memory Channel Band Auto Grouping (MBAG) is one of the advanced features of the FTM-300DR. Memory channels are automatically categorized in each band, and memory channels can be easily and quickly recalled by 4 Band Groups - Airband(M-AIR), VHF(M-VHF), UHF(M-UHF) and 174-400MHz/ 480-999.99MHz (M-GEN).
3W audio power speaker ensures a clear and crisp audio – that has been specifically tuned for quality audio. Two individual external speaker jacks are provided. Users can output the VFO A and B band Receiver to separate speakers or mix A and B signals when a single external speaker is used.
Built-in Bluetooth unit is installed in the FTM-300DR. This enables the hands-free operation with the YAESU SSMBT10 or a commercially available product. The SSM-BT10 is equipped with a PTT button and also supports VOX operation. Using the new USB charger cable – SCU-41 with the controller of the FTM-300DR, the SSM-BT10 can be easily charged. The SSM-BT10 works for approximately 20 hours on single charge.
The FTM-300DR supports both the WiRES-X Portable Digital Node function and Fixed Node function with the HRI-200. Since simultaneous C4FM monitoring on both VFO A and VFO B is possible, users can enjoy both WiRES-X communications on one channel while monitoring another local channel at the same time.
Other advanced features of the new FTM-300DR include; DG-ID (Digital ID); Group Monitor; positional awareness from the built-in 66ch High Sensitivity GPS receiver enabling Real Time Navigation; Backtrack feature; a GPS Terminal for an external GPS receiver; 1200/ 9600 APRS data modem for APRS mode; Voice Recording of both Received and Transmitted audio; save and load data including configuration and memory channel information to a micro SD card; Snapshot function using the optional MH-85A11U camera microphone.
Model Brackets MMB-98
Vacuum Cup Mount Bracket for Controller
Data Cable MDIN10 pin to MDIN6 pin + Dsub9
Data Cable MDIN10 pin to MDIN6 pin
Data Cable MDIN10 pin to Dsub9
Data Cable MDIN10 pin to Open
WIRES X Connection Cable Kit (Inc. SCU-20 and Audio Cable)
Control Cable 20ft (6m) (Radio - Controller connection cable)
Charging Cable for Bluetooth Headset SSM-BT10
Microphone with Snapshot Camera
Microphone Extension Cable 10 ft (3m) for MH-85A11U
Optional Boards FVS-2
Voice Guide Unit
Power Supplies FP-1023
Power Supply (23A)
Power Supply (30A)
Speakers MLS-100 External Speaker (12 Watt Peak)
Amateur Radio \ Brochures \ VHF/UHF Mobile Transceivers
FTM-300DE Deutsch Catalog ( 4.44 MB )
FTM-300DE French Catalog ( 4.53 MB )
FTM-300DE Italian Catalog ( 4.47 MB )
FTM-300DE Spanish Catalog ( 4.61 MB )
FTM-300DR/DE Catalog ( 3.89 MB )
Amateur Radio \ Manuals \ Digital
FTM-300DR New Functions ( 837.03 KB )
FTM-300DR/DE Instruction Manual (APRS Edition) 2005-A ( 7.25 MB )
FTM-300DR/DE Instruction Manual (GM Edition) 2005-A ( 2.43 MB )
FTM-300DR/DE Instruction Manual (WIRES-X Edition) 2007-C ( 3.70 MB )
FTM-300DE Deutsch Operating Manual (2006M-AS) ( 16.47 MB )
FTM-300DE Deutsch Advance Manual ( 6.76 MB )
FTM-300DE Deutsch Instruction Manual (APRS Edition) ( 7.21 MB )
FTM-300DE Deutsch Instruction Manual (GM Edition) ( 2.32 MB )
FTM-300DE Deutsch Instruction Manual (WiRES-X Edition) 2007-B ( 3.70 MB )
FTM-300DE French Operating Manual (2006P-AC) ( 16.44 MB )
FTM-300DE French Advance Manual ( 6.77 MB )
FTM-300DE French Instruction Manual (APRS Edition) ( 7.19 MB )
FTM-300DE French Instruction Manual (GM Edition) ( 2.32 MB )
FTM-300DE French Instruction Manual (WiRES-X Edition) 2007-B ( 3.70 MB )
FTM-300DE Italian Operating Manual (2007K-BS) ( 16.40 MB )
FTM-300DE Italian Advance Manual ( 6.76 MB )
FTM-300DE Italian Instruction Manual (APRS Edition) ( 7.19 MB )
FTM-300DE Italian Instruction Manual (GM Edition) ( 2.32 MB )
FTM-300DE Italian Instruction Manual (WiRES-X Edition) 2007-B ( 3.69 MB )
FTM-300DE Spanish Operating Manual (2006O-AS) ( 16.49 MB )
FTM-300DE Spanish Advance Manual ( 6.76 MB )
FTM-300DE Spanish Instruction Manual (APRS Edition) ( 7.19 MB )
FTM-300DE Spanish Instruction Manual (GM Edition) ( 2.32 MB )
FTM-300DE Spanish Instruction Manual (WiRES-X Edition) 2007-B ( 3.70 MB )
FTM-300DR/DE Advance Manual (2012-C) ( 6.89 MB )
FTM-300DR/DE Operating Manual (2005V-BC-4) ( 16.72 MB )
FTM-300DR/DE Programming Software ADMS-12 Instruction Manual (2211-B) ( 1.54 MB )
WIRES-X Portable Digital Node Function Instruction Manual (2205-I) ( 12.57 MB )
Amateur Radio \ Software
FTM-300DR/DE [FTM-300D_EXP_Firmware_Update_2021_7.zip] ( 15.03 MB )
FTM-300DR/DE [FTM-300D_USA_Firmware_Update_2021_7.zip] ( 15.03 MB )
FTM-300DR/DE DSP Firmware Update Instruction Manual (2204C) ( 1.22 MB )
FTM-300DR/DE Main/Sub Firmware Update Instruction Manual (2204E) ( 3.14 MB )
FTM-300DR/DE Update Firmware Information 7/12/21 ( 41.45 KB )
FTM-300DR/FTM-300DE Programming Software ADMS-12 (Ver.22.214.171.124) ( 67.09 MB )
PL23XX_Prolific_DriverInstaller (Ver. 402) ( 8.85 MB )
WIRES-X Connection Cable Kit Driver Installation Manual (2205A) ( 836.29 KB )
When I boot up the WIRES-X software I see an error “not found audio device”. Why does this happen and how do I fix it? The WIRES-X software is not getting the "ok" from your computer that something is connected to your computers mic jack. Typically you can connect any earpiece to your mic input jack and this should resolve the issue. If your computer has a single jack for both mic and speaker audio, then you may have to use a USB sound card that provides the two jacks. These can typically be purchased online for less than $10. In PDN mode I get the error “Call cancelled in PDN mode” when I try to connect to “Room Name” in PDN mode. Some rooms are set up to what we call a “multi-mode” room. This means the room will accept both digital and analog node connections. In PDN (Personal Digital Node) mode you can only connect to the rooms that have been set up as “Digital-Only”. This means in PDN mode you can only connect to those rooms who only accept digital nodes. Mixed mode rooms (example: AMERICA_LINK) is multi-mode, it will not accept a PDN connection. Why does the WIRES-X button not work with my hotpsot? Or why can I not save Wires X rooms in my radios categories area with my hotpsot? Off brand hotpsots do not use the true fusion protocol. Hotpsots do not connect you to the WIRES-X network, they connect to what are known as YSF or FCS reflectors which are not part of the WIRES-X network.
